KR 22 smoked Lavender Guitar Fralin Humbucker on scale 7 pounds 14.2 ounces

Overview:

Traditional? No thanks... It's turn it up time. Powered by Fralin Pure P.A.F. Humbuckers carve out a versatile space. Country, Blues, Rock, Jazz.., anywhere you need to be. With a unique look, a soft smooth python guard, locking keys & a stiff beautiful neck... It's time to bring home a new friend.  Top of the line wood selection, craftsmanship, hardware & electronics keep this instrument singing effortlessly while you stay in the music, worry free from distraction & struggle.  A normal weight for this model. This 7 lb 14.2 oz or 7.89 lb specimen is ready for the professional artist to bring in the studio. The neck had ZERO deflection or (relief) before stringing, & .0012" deflection or (relief) after a set of String Joy .0095" to .046" went on. The relief was forced into the neck at .004" for 14 days, then set at .0035" & steady. It's difficult to find a more stable neck design anywhere. This guitar handles open tunings with ease, there's no rechecking each string several times for pitch. You'll keep up through the change up.  This guitar has a full frequency response perfect for rhythm & lead. Sit in the mix or jump out front with the flip of the switch.

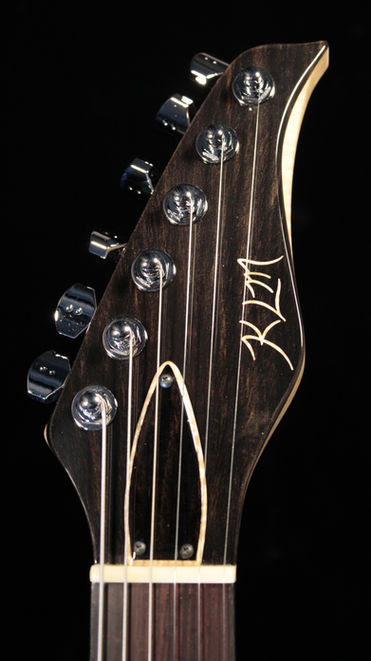

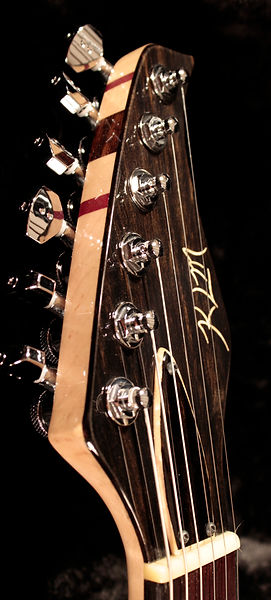

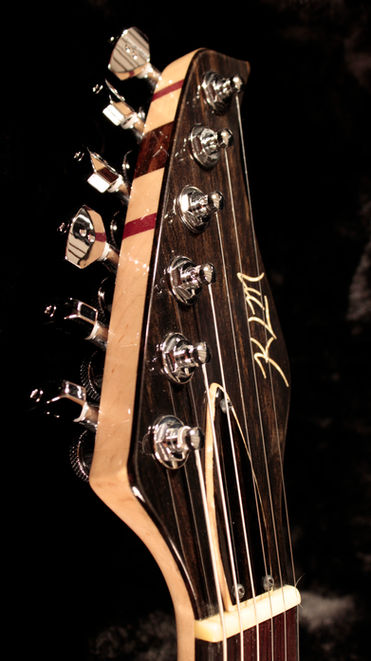

KR 22 Guitar Headstock Flamed Maple neck wenge purple heart with ebony overlay Flamed Maple Inlay Grapgtech ratio locking tuners

Playability:
Tuning stability, intonation & a stiff neck is what the doctor ordered.

A polished bone nut, Graphtech Ratio Locking Tuners & a Gotoh Wrap Around bridge keep the strings in place.

A stiff neck takes the energy you give during the performance.

Keep your mind in the music, not on the gear.

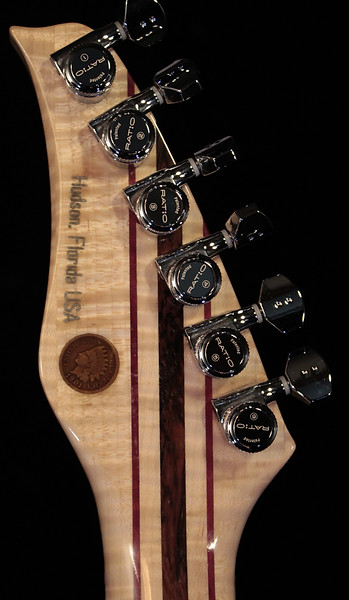

KR 22 Guitar Headstock back Flamed Maple neck wenge purple heart with  coin inlay Grapgtech ratio locking tuners

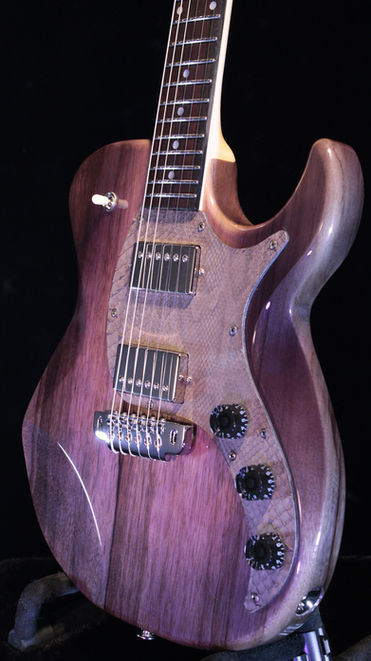

KR 22 Guitar Smoked Lavender Nitro Front

Unmatched Voice:

This smoked lavender candy bar is proudly powered by Fralin Pure P.A.F. Humbuckers polished nickel covered pickups. Perfectly matched providing that powerful, clear, bold, yet touch sensitive true tone of the guitar. The articulate nature of these pickups let you hear the individual notes & nuances of a crowded space.   ​ Packed in a fully copper shielded body are smooth tapered, sealed Dunlop Pots with a three way Switchcraft switch, braided wire & a double treble bleed on both volumes. This keeps the noise of the venue out of your speakers & the music in their face. With an Emerson paper oil tone cap, the singer can stand out front where they should be, when they get a chance...

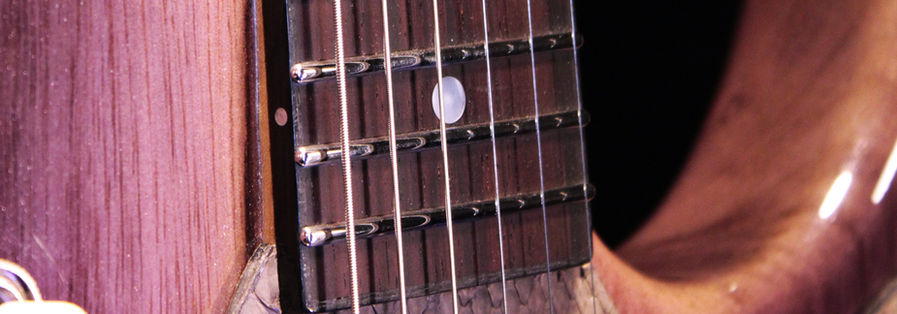

Fretend close up Sainless Steel Jumbo Hemispherical ends

Comfortable Hands:
Your hands have enough to do...
Smooth, polished jumbo frets keep the vibrato & legato at your finger tips. While the smooth feel of the bridge gives you that firm rest for the palm, it also gives you that out of the way feel when you've got to... go for it.
Hemispherical fret ends slide right by the fast changes, and the stainless steel keeps it that way.

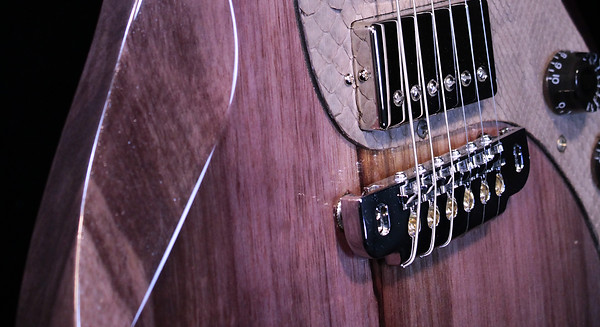

KR 22 Smoked Lavender with Gotoh Wrap around bridge

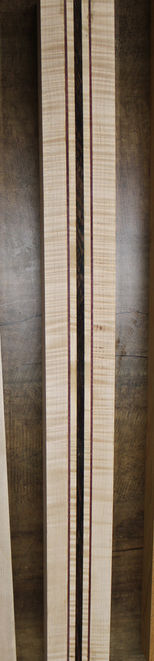

Headstock back with coin inlay vlose up Flame maple Neck Wenge & purple heart laminate

What's behind the scene isn't always for  the crowd...
This coin is a personal gift from me to you.
It represents my old fashion ways & sense of pride. In the days of this coin, Craftsmen were Craftsmen & this 1901 penny was representative of their true efforts. I'm proudly passing my efforts to you. I know you will use them as a tool to inspire others in your unique way.

Gradient Background_edited_edited_edited.jpg

Woods & Inlays

Specs

Body

1 Solid Piece - Heavy Patterned Black Limba

Neck woods

Flamed Maple - Book Matched

Neck Center Laminate Woods

Wenge Center & Purple Heart Strips

Fingerboard wood

Boise De Rose

Fingerboard Inlay

Pearl

Binding

Ebony

Side Dots

Pearl

Headstock Overlay

Ebony

Headstock Inlay

Flamed Maple Logo

Truss Rod Cover

Flame Maple with Ebony Inlay Hand Blue Screws

Hardware

Specs

Pick Guard & Switch Cover

Tagged Florida Python

Guard & Switch Screws

Hand Blued Stainless Steel Machine Screws in Aluminum Anchors

Nut

Polished Bone

Frets

22 Stainless Steel Jumbo with Hemispherical Ends

Truss Rod

Low Profile Dual Action 4mm Key

Carbon Fiber Rod

2 Large Carbon Fiber Rods

Bridge

Gotoh Wrap Around Intonatable Chrome

Tuning Keys

Graphtech Ratio Locking 6 In Line Chrome

Speed Knobs

Control Knobs

Oversize Gotoh Chrome

Strap Buttoms

Electronics

Specs

Bridge Pickup

Fralin Pure P.A.F. Humbucker Polished Nickel Cover

Neck Pickup

Fralin Pure P.A.F. Humbucker Polished Nickel Cover

Switch

3 Position Switchcraft with Smooth Polished Cream Tip

Jack

Switchcraft

Pots

Dunlop Sealed Smooth Tapper 500k

Tone Cap

Emerson Paper Oil .22

Treble Bleed

Both Volumes Double - Resistor & Capacitor

Wire

Braided

Cavity Shielding

Copper with Polished Swirl Both Cavities & Covers

Measurements

Specs

7 lbs 14.2 oz (or) 7.8875 lbs

Weight

Scale

24.625

Fingerboard Radius

12

Nut Width

1.69" or 1 11/16" or 43 mm

Neck Thickness

1st Fret .87"    12th Fret .98"

Neck Shape

Hand Carved Fast C, with Increasing Flattened Center in the Upper Frets

Finish

Specs

Nitro Gloss

Paint

Colors

Smoked Lavender - Lavender Over Light Smoked Metallic Black

Set Up

Specs

3/64th " or 1.25 mm @ 12th

Action

Relief

.00375"

Case

Specs

Gator Brand Road Case with Custom Snug Fit

Road Case
