Overview:

Straight from Davy Jones, lost booty in metallic blue. Powered by Fralin Pure P.A.F. Humbuckers carving out a versatile space. Country, Blues, Rock, Jazz... anywhere you need to be.  The treasure hunt is over. It's time to bring home a new blue friend.    Top of the line wood selection, craftsmanship, hardware & electronics keep this instrument singing effortlessly while you stay in the music, worry free from distraction & struggle.    A normal weight for this model. This 7 lb 4.8 oz or 7.3 lb specimen is ready for the professional artist to bring in the studio.   The neck had ZERO deflection or (relief) before stringing, & .0017" deflection or (relief) after a set of String Joy .0095" to .046" went on. The relief was forced into the neck at .004" for 14 days, then set at .0035" & steady. It's difficult to find a more stable neck design anywhere. This guitar handles open tunings with ease, there's no rechecking each string several times for pitch. You'll keep up through the change up.    This guitar has a full frequency response perfect for rhythm & lead. Sit in the mix or jump out front with the flip of the switch.

Get in touch

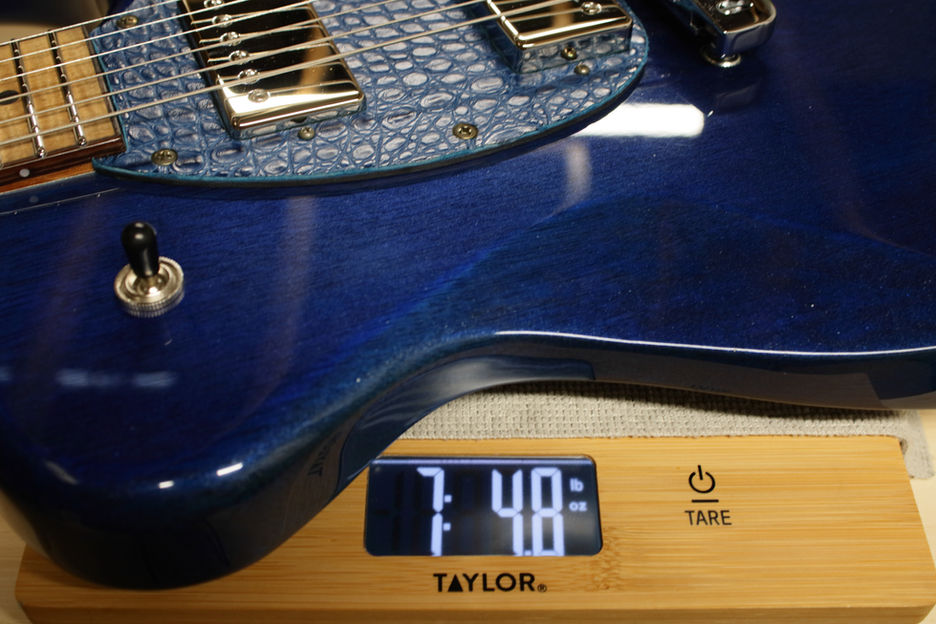

KR 22 guitar Metallic Davy Jones Blue on Scale 7 pounds 4.8 Ounces
KR 22 guitar Metallic Davy Jones Blue

Unmatched Voice:

This sparkling blue Davy Jones booty is proudly powered by Fralin Pure P.A.F. Humbuckers polished nickel covered pickups. Perfectly matched providing that powerful, clear, bold, yet touch sensitive true tone of the guitar. The articulate nature of these pickups let you hear the individual notes & nuances of a crowded space. ​ Packed in a fully copper shielded body are smooth tapered, sealed Dunlop Pots with a three way Switchcraft switch, braided wire & a double treble bleed on both volumes. This keeps the noise of the venue out of your speakers & the music in their face. With an Emerson paper oil tone cap, the singer can stand out front where they should be, when they get a chance...

Headstock Front Wenge Oberlay Flmed Crepe Myrtle Inlay Honduran Mahogany truss od cover with wenge inlay Graphtech Ratio Locking tunning keys

Playability:
Tuning stability, intonation & a stiff neck is what the doctor ordered.

A polished bone nut, Graphtech Ratio Locking Tuners & a Gotoh Wrap Around bridge keep the strings in place.

A stiff neck takes the energy you give during the performance.

Keep your mind in the music, not on the gear.

Headstock Back Honduranmahogany Padauk Weng Laminate Coin Inlay Graphteck Ratio Locking Tuners
KR 22 guitar Metallic Davy Jones Blue  frets Stainless Steel Jumbo Hehispherical ends

Comfortable Hands:
Your hands have enough to do...
Smooth, polished jumbo frets keep the vibrato & legato at your finger tips. While the smooth feel of the bridge gives you that firm rest for the palm, it also gives you that out of the way feel when you've got to... go for it.
Hemispherical fret ends slide right by the fast changes, and the stainless steel keeps it that way.

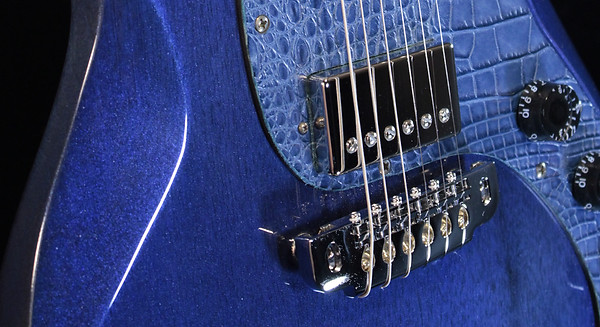

KR 22 guitar Metallic Davy Jones Blue  Gotoh Wrap Around Bridge

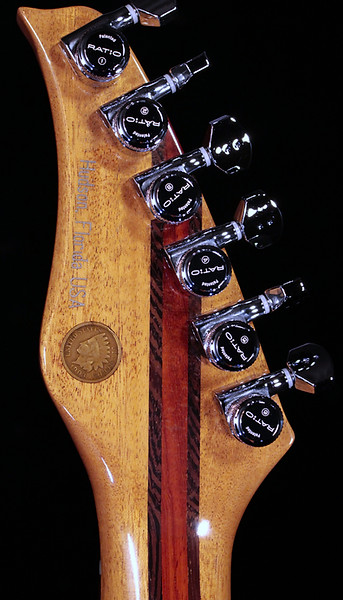

Headstock close up Back Honduranmahogany Padauk Weng Laminate Coin Inlay Graphteck Ratio Locking Tuners

What's behind the scene isn't always for  the crowd...
O.K., what's the coin?... it's a personal gift from me to you.
It represents my old fashion ways & sense of pride. In the days of this coin, Craftsmen were Craftsmen & this 1903 penny was representative of their true efforts. I'm proudly passing my efforts to you. I know you will use them as a tool to inspire others in your unique way.

Gradient Background_edited_edited_edited.jpg

Woods & Inlays

Specs

Body

1 Solid Piece - Black Limba

Neck woods

Honduran Mahogany Mahogany Book-matched

Neck Center Laminate Woods

Padauk Center with Wenge Sides

Fingerboard wood

30 Year Old Harvest Highly Flamed Crape Myrtle (limited)

Fingerboard Inlay

Wooden Ebony Dots

Binding

Wenge

Side Dots

Pearl

Headstock Overlay

Wenge

Headstock Inlay

Flamed Crape Myrtle

Truss Rod Cover

Honduran Mahogany with Inlayed Wenge & Hand Blued Screws

Hardware

Specs

Pick Guard & Switch Cover

Tagged Louisiana Farm Raised Alligator Belly Hand Dyed Ice Blue

Guard & Switch Screws

Hand Blued Stainless Steel Machine Screws in Aluminum Anchors

Nut

Polished Bone

Frets

22 Stainless Steel Jumbo with Hemispherical Ends

Truss Rod

Low Profile Dual Action 4mm Key

Carbon Fiber Rod

2 Large Carbon Fiber Rods

Bridge

Gotoh Wrap Around Intonatable Chrome

Tuning Keys

Graphtech Ratio Locking 6 In Line Chrome

Speed Knobs

Control Knobs

Oversize Gotoh Chrome

Strap Buttoms

Electronics

Specs

Bridge Pickup

Fralin Pure P.A.F. Humbucker Polished Nickel Cover

Neck Pickup

Fralin Pure P.A.F. Humbucker Polished Nickel Cover

Switch

3 Position Switchcraft with Smooth Polished Black Tip

Jack

Switchcraft

Pots

Dunlop Sealed Smooth Tapper 500k

Tone Cap

Emerson Paper Oil .22

Treble Bleed

Both Volumes Double - Resistor & Capacitor

Wire

Braided

Cavity Shielding

Copper with Polished Swirl Both Cavities & Covers

Measurements

Specs

7 lbs 4.8 oz (or) 7.3 lbs

Weight

Scale

24.625

Fingerboard Radius

12

Nut Width

1.69" - 1 11/16" - 43 mm

Neck Thickness

1st Fret .87"    12th Fret .98"

Neck Shape

Hand Carved Fast C, with Increasing Flattened Center in the Upper Frets

Finish

Specs

Nitro Gloss

Paint

Colors

Translucent Metallic Davy Jones Blue

Set Up

Specs

3/64th " or 1.25 mm

Action

Relief

.00375"

Case

Specs

Gator Brand Road Case with Custom Snug Fit

Road Case
