Overview:

Tuxedo time... no no no... It's turn it up time. Powered by Fralin Pure P.A.F. Humbuckers carve out a versatile space. Country, Blues, Rock, Jazz.., anywhere you need to be. The Fretboard & guard light up this black beauty. It's time to bring home a new friend.    Top of the line wood selection, craftsmanship, hardware & electronics keep this instrument singing effortlessly while you stay in the music, worry free from distraction & struggle.    A normal weight for this model. This 7 lb 10.2 oz or 7.64 lb specimen is ready for the professional artist to bring in the studio.   The neck had ZERO deflection or (relief) before stringing, & .0023" deflection or (relief) after a set of String Joy .0095" to .046" went on. The relief was forced into the neck at .004" for 14 days, then set at .0035" & steady. It's difficult to find a more stable neck design anywhere. This guitar handles open tunings with ease, there's no rechecking each string several times for pitch. You'll keep up through the change up.    This guitar has a full frequency response perfect for rhythm & lead. Sit in the mix or jump out front with the flip of the switch.

Get in touch

KR 22 Deep Translucent black Purple Gator Guard on Scale 7 pounds 10.2 ounces
KR 22 Deep Translucent black Purple Gator Guard

Unmatched Voice:

This Long Cool Woman in a Black Dress is proudly powered by Fralin Pure P.A.F. Humbuckers polished nickel covered pickups. Perfectly matched providing that powerful, clear, bold, yet touch sensitive true tone of the guitar. The articulate nature of these pickups let you hear the individual notes & nuances of a crowded space. ​ Packed in a fully copper shielded body are smooth tapered, sealed Dunlop Pots with a three way Switchcraft switch, braided wire & a double treble bleed on both volumes. This keeps the noise of the venue out of your speakers & the music in their face. With an Emerson paper oil tone cap, the singer can stand out front where they should be, when they get a chance...

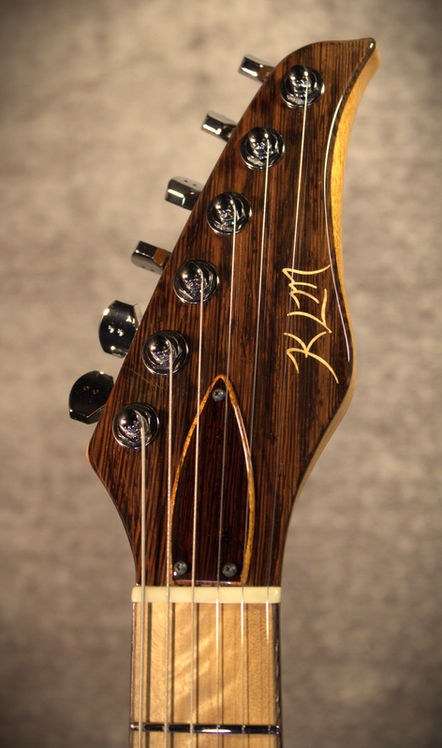

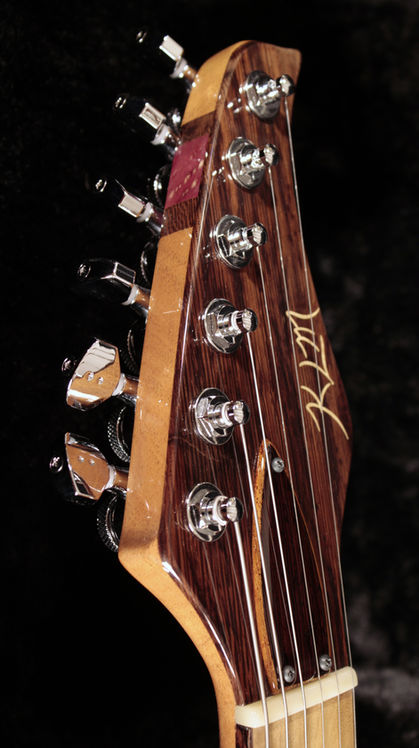

KR 22 Deep Translucent black Purple Gator Guard Head Stock Wenge Overlay Flamed Crepe Myrtle Inlay Mahogany truss rod cover with wenge inlay Graphtech Locking Tuners

Playability:
Tuning stability, intonation & a stiff neck is what the doctor ordered.

A polished bone nut, Graphtech Ratio Locking Tuners & a Gotoh Wrap Around bridge keep the strings in place.

A stiff neck takes the energy you give during the performance.

Keep your mind in the music, not on the gear.

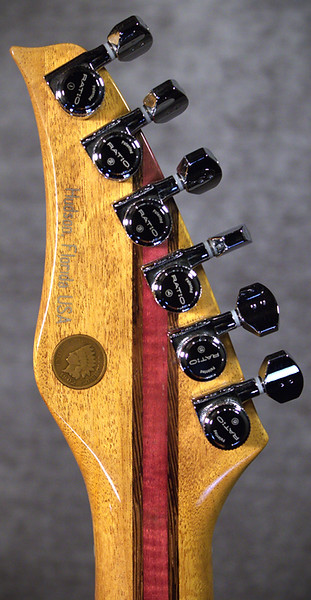

Head Stock back Honduran mahogany Purple heart & Wenge laminate graphtech locking tuners and coin inlay
KR 22 Deep Translucent black Purple Gator Guard fret close up Stainless Steel Jumbo Hemispherical ends

Comfortable Hands:
Your hands have enough to do...
Smooth, polished jumbo frets keep the vibrato & legato at your finger tips. While the smooth feel of the bridge gives you that firm rest for the palm, it also gives you that out of the way feel when you've got to... go for it.
Hemispherical fret ends slide right by the fast changes, and the stainless steel keeps it that way.

KR 22 Deep Translucent black Purple Gator Guard with Goto Wrap around bridge
Head Stock back Honduran mahogany Purple heart & Wenge laminate graphtech locking tuners and coin inlay close up

What's behind the scene isn't always for  the crowd...
This coin is a personal gift from me to you.
It represents my old fashion ways & sense of pride. In the days of this coin, Craftsmen were Craftsmen & this 1902 Penny was representative of their true efforts. I'm proudly passing my efforts to you. I know you will use them as a tool to inspire others in your unique way.

Gradient Background_edited_edited_edited.jpg

Woods & Inlays

Specs

Body

1 Solid Piece - Honduran Mahogany

Neck woods

Honduran Mahogany Book-matched

Neck Center Laminate Woods

Figured Purple Heart Center with Wenge Sides

Fingerboard wood

30 Year Old Harvest Highly Flamed Crape Myrtle (limited)

Fingerboard Inlay

Abalone

Binding

Wenge

Side Dots

Abalone

Headstock Overlay

Wenge

Headstock Inlay

Flamed Crape Myrtle

Truss Rod Cover

Honduran Mahogany with Inlayed Wenge & Hand Blue Screws

Hardware

Specs

Pick Guard & Switch Cover

Tagged Louisiana Farm Raised Alligator Belly Hand Dyed Purple Fade

Guard & Switch Screws

Hand Blued Stainless Steel Machine Screws in Aluminum Anchors

Nut

Polished Bone

Frets

22 Stainless Steel Jumbo with Hemispherical Ends

Truss Rod

Low Profile Dual Action 4mm Key

Carbon Fiber Rod

2 Large Carbon Fiber Rods

Bridge

Gotoh Wrap Around Intonatable Chrome

Tuning Keys

Graphtech Ratio Locking 6 In Line Chrome

Speed Knobs

Control Knobs

Oversize Gotoh Chrome

Strap Buttoms

Electronics

Specs

Bridge Pickup

Fralin Pure P.A.F. Humbucker Polished Nickel Cover

Neck Pickup

Fralin Pure P.A.F. Humbucker Polished Nickel Cover

Switch

3 Position Switchcraft with Smooth Polished Black Tip

Jack

Switchcraft

Pots

Dunlop Sealed Smooth Tapper 500k

Tone Cap

Emerson Paper Oil .22

Treble Bleed

Both Volumes Double - Resistor & Capacitor

Wire

Braided

Cavity Shielding

Copper with Polished Swirl Both Cavities & Covers

Measurements

Specs

7 lbs 10.2 oz (or) 7.64 lbs

Weight

Scale

24.625

Fingerboard Radius

12

Nut Width

1.69" - 1  11/16" - 43 mm

Neck Thickness

1st Fret .87"    12th Fret .98"

Neck Shape

Hand Carved Fast C, with Increasing Flattened Center in the Upper Frets

Finish

Specs

Nitro Gloss

Paint

Colors

Deep Translucent Black

Set Up

Specs

3/64th " or 1.25 mm

Action

Relief

.00375"

Case

Specs

Gator Brand Road Case with Custom Snug Fit

Road Case
