EA 24 Translucent ruby red guitar front on scle 6 pounds 14.5 ounces

Overview:

This is an aggressive Rock -N- Roll Machine built with a high rpm engine. This Translucent Ruby Red is impossible for me to capture in a photograph. Up close & personal, it's a real piece of jewelry. Top of the line wood selection, craftsmanship, hardware & electronics keep this instrument singing effortlessly while you stay in the music, worry free from distraction & struggle.  This is a lighter  weight for this model. This 6.9 lb or 6 lb 14.5 oz specimen is ready for the professional artist to bring in the studio. The neck had ZERO deflection or (relief) before stringing, & .001" deflection or (relief) after a set of String Joy .0095" to .046" went on. The relief was forced into the neck at .004" for 14 days, then set at .0035" & steady. It's difficult to find a more stable neck design anywhere. This guitar handles open tunings with ease, there's no rechecking each string several times for pitch. You'll keep up through the change up. With it's neck & overall weight this guitar has a super high frequency response perfect for  lead. Cuts like a knife...

EA 24 Translucent ruby red guitar front body only

Unmatched Voice:

This Race Car Ruby Red guitar is proudly powered by Fralin P90 original, stock wound, polished nickel covered pickups. Perfectly matched providing that clear, powerful, yet touch sensitive true tone of the guitar. The articulate nature of these pickups let you hear the individual notes & nuances of a crowded space.   ​ Packed in a fully copper shielded body are smooth tapered, sealed Dunlop Pots with a three way Switchcraft switch, braided wire & a double treble bleed on both volumes. This keeps the noise of the venue out of your speakers & the music in their face. With an Emerson paper oil tone cap, the singer can stand out front where they should be, when they get a chance...

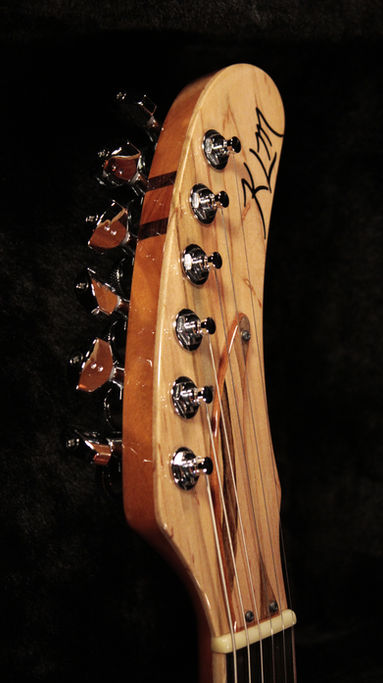

EA 24 Translucent ruby red guitar front of headstock with ambrosia maple & graphtech ratio locking tunning keys

Playability:
Tuning stability, intonation & a stiff neck is what the doctor ordered.

A polished bone nut, Graphtech Ratio Locking Tuners & a Gotoh Wrap Around bridge keep the strings in place.

A stiff neck takes the energy you give during the performance.

Keep your mind in the music, not on the gear.

EA 24 Translucent ruby red guitar back of headstock with cuban mahogany red heart wenge graphtech ratio locking tunning keys & coin inlay

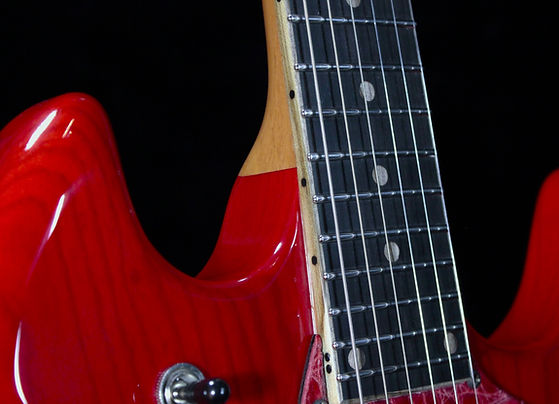

EA 24 Translucent ruby red guitar front close up of fret ends stainless steel jumbo hemispherical ends

Comfortable Hands:
Your hands have enough to do...
Smooth, polished jumbo frets keep the vibrato & legato at your finger tips. While the smooth feel of the bridge gives you that firm rest for the palm, it also gives you that out of the way feel when you've got to... go for it.
Hemispherical fret ends slide right by the fast changes, and the stainless steel keeps it that way.

EA 24 Translucent ruby red guitar front with gotoh wrap around bridge
EA 24 Translucent ruby red guitar back of headstock with cuban mahogany red heart wenge graphtech ratio locking tunning keys & coin inlay close up

What's behind the scene isn't always for  the crowd...
This coin is a personal gift from me to you.
It represents my old fashion ways & sense of pride. In the days of this coin, Craftsmen were Craftsmen & this 1924 nickel was representative of their true efforts. I'm proudly passing my efforts to you. I know you will use them as a tool to inspire others in your unique way.

Gradient Background_edited_edited_edited.jpg

Woods & Inlays

Specs

Body

1 Solid Piece - Ash

Neck woods

Cuban Mahogany Book-matched

Neck Center Laminate Woods

Red Heart Center with Wenge Sides

Fingerboard wood

Ebony

Fingerboard Inlay

Wooden Ambrosia Maple Dots

Binding

Ambrosia Maple

Side Dots

Wooden Ebony

Headstock Overlay

Ambrosia Maple with Hand Blued Screws

Headstock Inlay

Wooden Ebony

Truss Rod Cover

Cuban Mahogany with Inlayed Ambrosia Maple

Hardware

Specs

Pick Guard & Switch Cover

Tagged Louisiana Farm Raised Alligator Belly Hand Dyed Maraschino Red

Guard & Switch Screws

Hand Blued Stainless Steel Machine Screws in Aluminum Anchors

Nut

Polished Bone

Frets

24 Stainless Steel Jumbo with Hemispherical Ends

Truss Rod

Low Profile Dual Action 4mm Key

Carbon Fiber Rod

2 Large Carbon Fiber Rods

Bridge

Gotoh Wrap Around Intonatable Chrome

Tuning Keys

Graphtech Ratio Locking 6 In Line Chrome

Speed Knobs

Control Knobs

Oversize Brushed Aluminum

Strap Buttoms

Electronics

Specs

Bridge Pickup

Fralin P90 Polished Nickel Cover

Neck Pickup

Fralin P90 Polished Nickel Cover

Switch

3 Position Switchcraft with Smooth Polished Black Tip

Jack

Switchcraft

Pots

Dunlop Sealed Smooth Tapper 250k

Tone Cap

Emerson Paper Oil .22

Treble Bleed

Both Volumes Double - Resistor & Capacitor

Wire

Braided

Cavity Shielding

Copper with Polished Swirl Both Cavities & Covers

Measurements

Specs

6 lbs 14.5 oz (or) 6.9 lbs

Weight

Scale

24.625

Fingerboard Radius

12

Nut Width

1.69" - 1 11/16" - 43 mm

Neck Thickness

1st Fret .87"    12th Fret .98"

Neck Shape

Hand Carved Fast C, with Increasing Flattened Center in the Upper Frets

Finish

Specs

Nitro Gloss

Paint

Colors

Translucent Race Car Ruby Red

Set Up

Specs

3/64th " or 1.25 mm

Action

Relief

.00375"

Case

Specs

Gator Brand Road Case with Custom Snug Fit

Road Case
