Specs

EA Purple Sparkle Overview

Overview:

This Rock -N- Roll Machine is built with a subtle over the top look. With three colors of bass boat sparkle, smaller sparkles & even some Metallic in the deep purple translucent color coat.  This guitar is hard to describe & even harder to capture in a photograph. With such a dynamic finish, it truly looks different in every light & from every angle.  Top of the line wood selection, craftsmanship, hardware & electronics keep this instrument singing effortlessly while you stay in the music, worry free from distraction & struggle.  This is a medium weight for this model. This 7 lb 13.4 oz (or) 7.84 lb specimen is ready for the professional artist to bring in the studio. The neck had ZERO deflection or (relief) before stringing, & .0012" deflection or (relief) after a set of String Joy .0095" to .046" went on. The relief was forced into the neck at .004" for 14 days, then set at .0035" & steady. It's difficult to find a more stable neck design anywhere. This guitar handles open tunings with ease. There's no rechecking each string several times for pitch. You'll keep up through the change up. This guitar has a medium frequency response & is perfect for rhythm & lead.

Get in touch

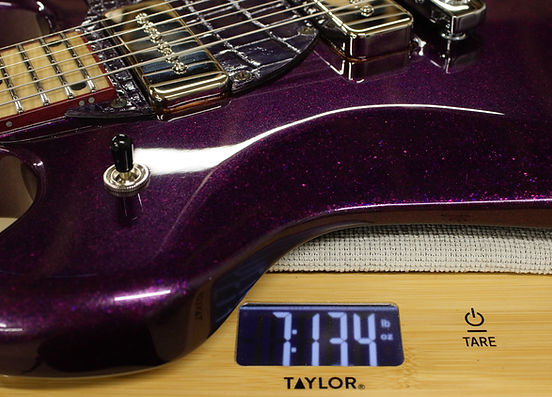

EA 24 Purple Sparkle Guitar  weight on scale 7 pounds 13.4 ounces

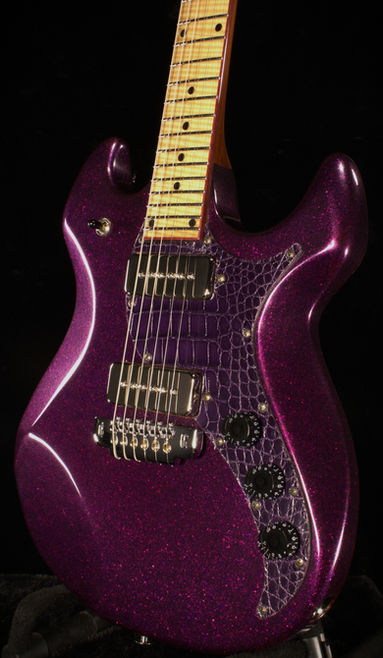

EA 24 Purple Sparkle Guitar  front

Unmatched Voice:

This purple bass boat / disco ball of a guitar is proudly powered by Fralin P90 original, stock wound, polished nickel covered pickups. Perfectly matched providing that clear, powerful, yet touch sensitive true tone of the guitar. The articulate nature of these pickups let you hear the individual notes & nuances of a crowded space.   ​ Packed in a fully copper shielded body are smooth tapered, sealed Dunlop Pots with a three way Switchcraft switch, braided wire & a double treble bleed on both volumes. This keeps the noise of the venue out of your speakers & the music in their face. With an Emerson paper oil tone cap, the singer can stand out front where they should be, when they should be.

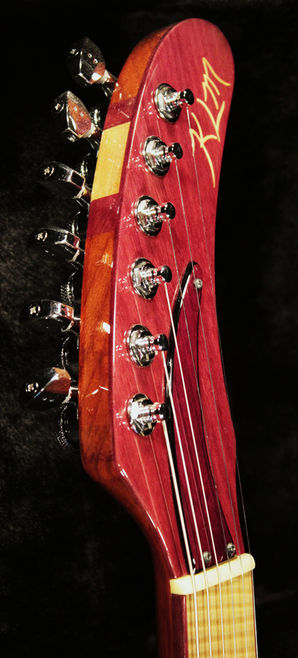

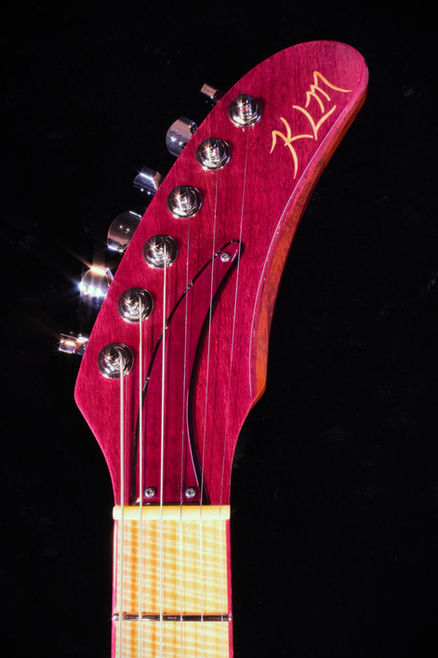

EA 24 Purple Sparkle Guitar  headstock front purple heart with Paduak reclaimed mahogany & graphtec ratio tunning keys

Playability:
Tuning stability, intonation & a stiff neck is what the doctor ordered.

A polished bone nut, Graphtech Ratio Locking Tuners & a Gotoh Wrap Around bridge keep the strings in place.

A stiff neck takes the energy you give during the performance.

Keep your mind in the music, not on the gear.

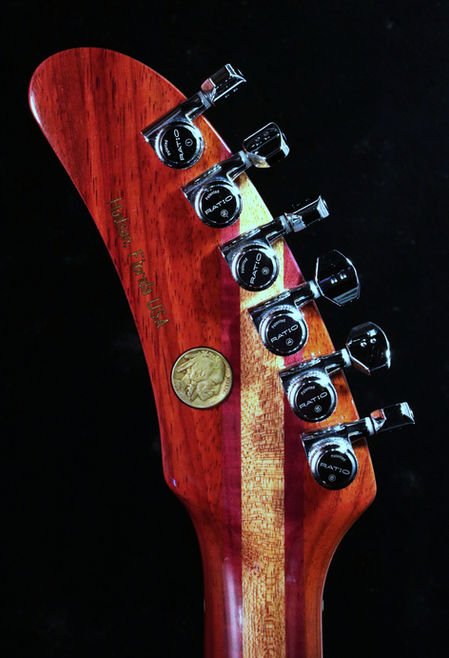

EA 24 Purple Sparkle Guitar  headstock front purple heart with Paduak reclaimed mahogany & graphtec ratio tunning keys & coin inlay

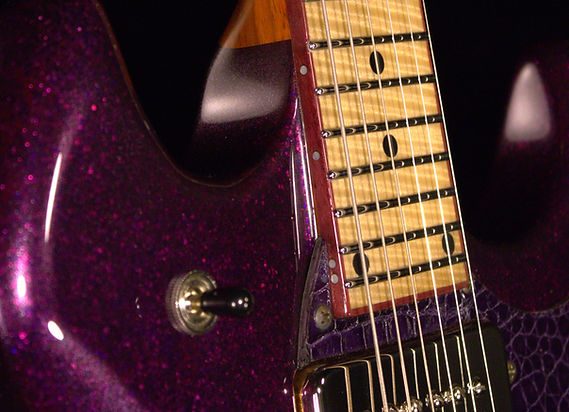

EA 24 Purple Sparkle Guitar jumbo stainless steel hemespherical frets

Comfortable Hands:
Your hands have enough to do...
Smooth, polished jumbo frets keep the vibrato & legato at your finger tips. While the smooth feel of the bridge gives you that firm rest for the palm, it also gives you that out of the way feel when you've got to... go for it.
Hemispherical fret ends slide right by the fast changes, and the stainless steel keeps it that way.

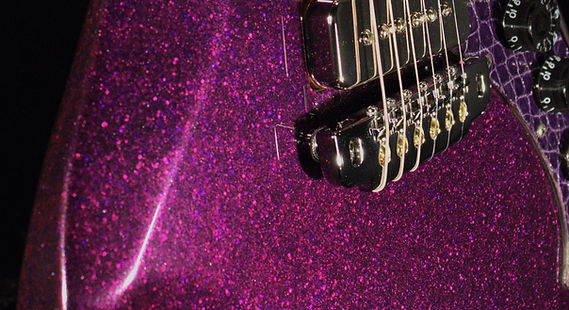

EA 24 Purple Sparkle Guitar  withgotoh wrap around bridge

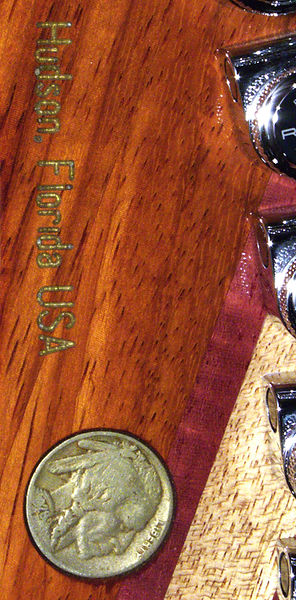

EA 24 Purple Sparkle Guitar  headstock front purple heart with Paduak reclaimed mahogany & graphtec ratio tunning keys & coin inlay close up

What's behind the scene isn't always for  the crowd...
This coin is a personal gift from me to you.
It represents my old fashion ways & sense of pride. In the days of this coin, Craftsmen were Craftsmen & this 1928 nickel was representative of their true efforts. I'm proudly passing my efforts to you. I know you will use them as a tool to inspire others in your unique way.

Gradient Background_edited_edited_edited.jpg

Woods & Inlays

Specs

Body

1 Solid Piece - Honduran Mahogany

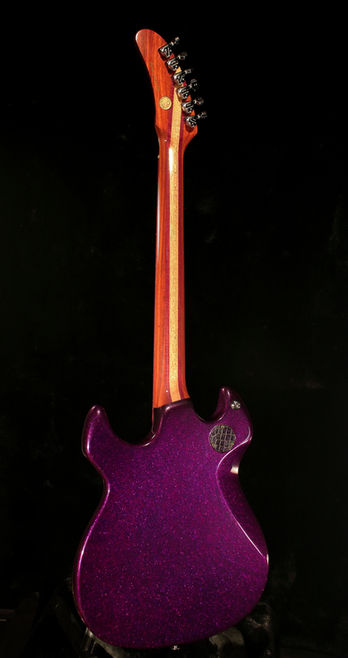

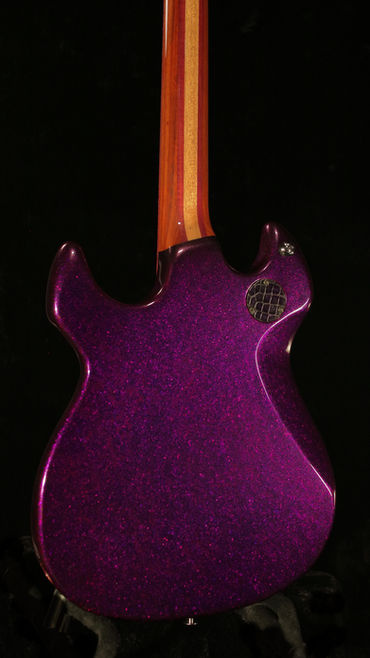

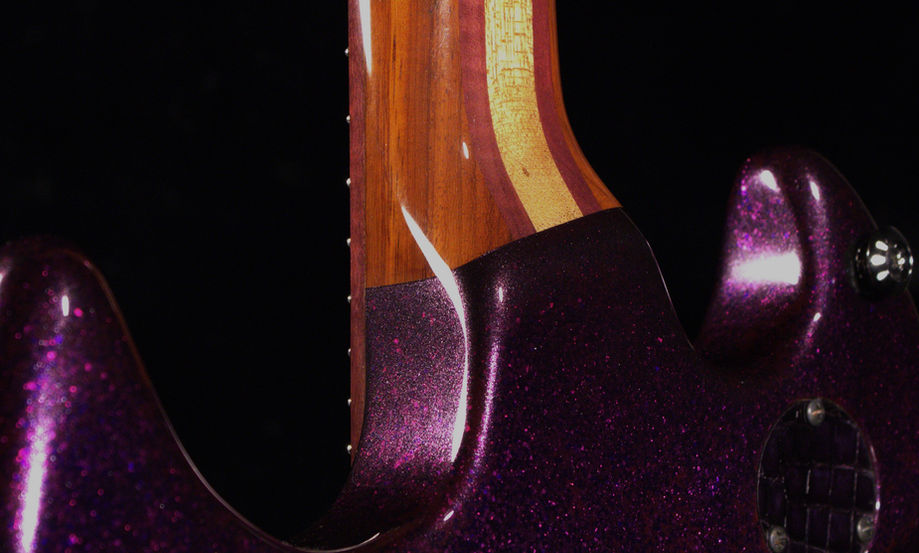

Neck woods

Padauk Book-matched

Neck Center Laminate Woods

Old Reclaimed Honduran Mahogany Center with Figured Purple Heart Sides

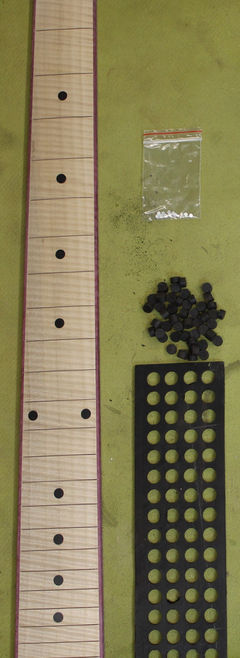

Fingerboard wood

30 Year Old Harvest Flamed Crape Myrtle (limited supply)

Fingerboard Inlay

Wooden Ebony Dots

Binding

Purple Heart

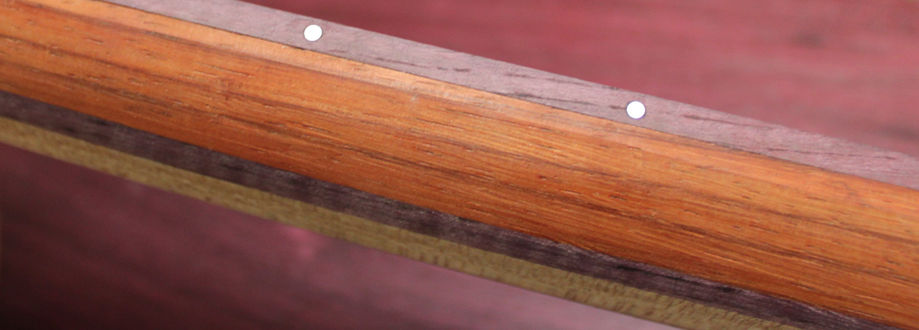

Side Dots

Pearl

Headstock Overlay

Purple Heart

Headstock Inlay

Inalyed Flamed Crape Myrtle Logo

Truss Rod Cover

Ebony with Inlayed Purple Heart & Hand Blued Screws

Hardware

Specs

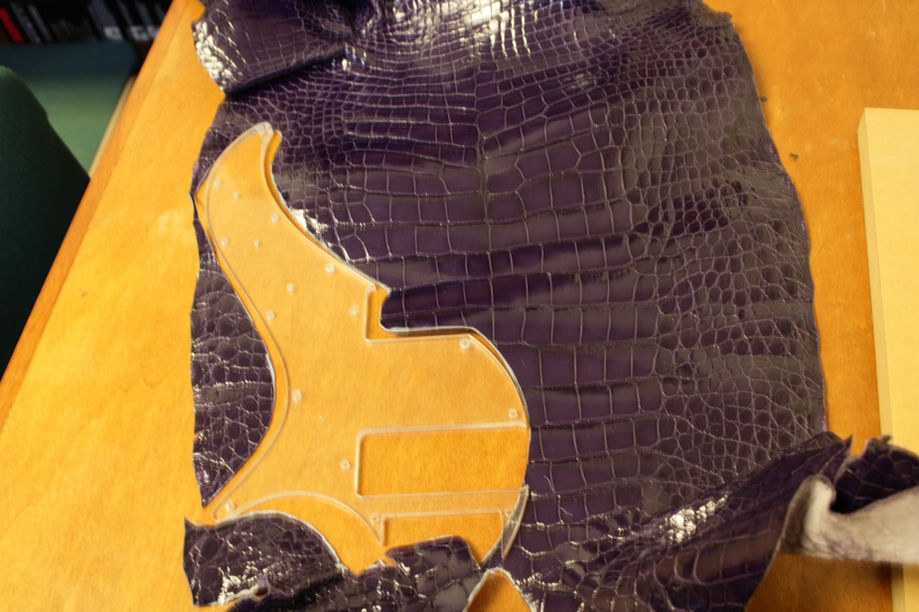

Pick Guard & Switch Cover

Tagged Louisiana Farm Raised Alligator Belly Purple Gloss

Guard & Switch Screws

Hand Blued Stainless Steel Machine Screws in Aluminum Anchors

Nut

Polished Bone

Frets

24 Stainless Steel Jumbo with Hemispherical Ends

Truss Rod

Low Profile Dual Action 4mm Key

Carbon Fiber Rod

2 Large Carbon Fiber Rods

Bridge

Gotoh Wrap Around Intonatable Chrome

Tuning Keys

Graphtech Ratio Locking 6 In Line Chrome

Speed Knobs

Control Knobs

Oversize Brushed Aluminum

Strap Buttoms

Electronics

Specs

Bridge Pickup

Fralin P90 Polished Nickel Cover

Neck Pickup

Fralin P90 Polished Nickel Cover

Switch

3 Position Switchcraft with Smooth Polished Black Tip

Jack

Switchcraft

Pots

Dunlop Sealed Smooth Tapper 250k

Tone Cap

Emerson Paper Oil .22

Treble Bleed

Both Volumes Double - Resistor & Capacitor

Wire

Braided

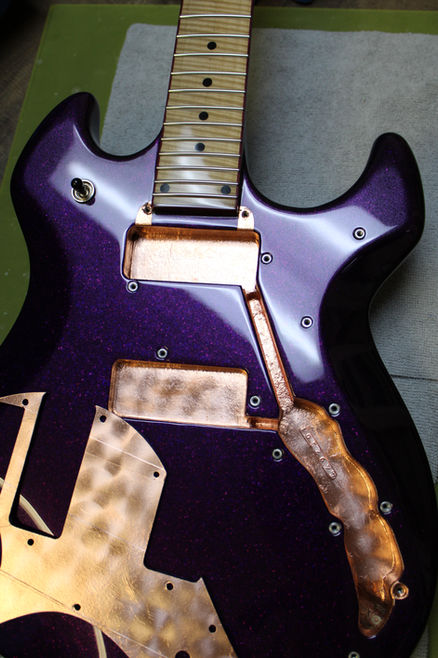

Cavity Shielding

Copper with Polished Swirl Both Cavities & Covers

Measurements

Specs

7 lbs 13.4 oz (or) 7.84 lbs

Weight

Scale

24.625

Fingerboard Radius

12

Nut Width

1.69" - 1 11/16" - 43 mm

Neck Thickness

1st Fret .87"    12th Fret .98"

Neck Shape

Hand Carved Fast C, with Increasing Flattened Center in the Upper Frets

Finish

Specs

Nitro Gloss

Paint

Colors

Purple Sparkle with Dark Translucent Purple

Set Up

Specs

3/64th " or 1.25 mm

Action

Relief

.00375"

Case

Specs

Gator Brand Road Case with Custom Snug Fit

Road Case
