Overview:

This IS Rock -N- Roll at it's sweetest. Built with a unique look and a 1 piece Korina neck. A metallic black cherry translucent color coat is hard to capture in a photograph. This dynamic finish truly looks different up close than from the crowd.  Top of the line wood selection, craftsmanship, hardware & electronics keep this instrument singing effortlessly while you stay in the music, worry free from distraction & struggle.  This is a medium weight for this model. This 7 lb 3.8 oz or 7.23 lb specimen is ready for the professional artist to bring in the studio. The neck had ZERO deflection or (relief) before stringing, & .0022" deflection or (relief) after a set of String Joy .0095" to .046" went on. The relief was forced into the neck at .004" for 14 days, then set at .0035" & steady. It's difficult to find a more stable neck design anywhere. This guitar handles open tunings with ease, there's no rechecking each string several times for pitch. You'll keep up through the change up.  This guitar has a medium frequency response & is perfect for rhythm, lead & clean.

Get in touch

EA 24 Black Cherry on scale weight 7 pounds 3.8 ounces

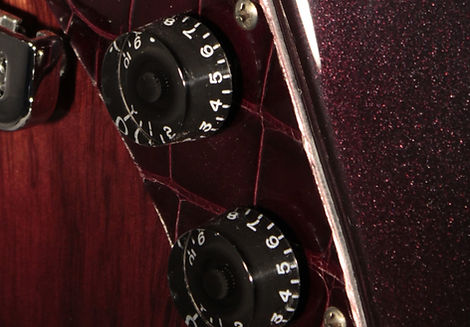

ea 24 black chery close up of metallic nitro paint gator guard & speed knobs
EA 24 Black Cherry front

Unmatched Voice:

This chocolate covered cherry of a guitar is proudly powered by Fralin P90 original, stock wound, polished nickel covered pickups. Perfectly matched providing that clear, powerful, yet touch sensitive true tone of the guitar. The articulate nature of these pickups let you hear the individual notes & nuances of a crowded space.   ​ Packed in a fully copper shielded body are smooth tapered, sealed Dunlop Pots with a three way Switchcraft switch, braided wire & a double treble bleed on both volumes. This keeps the noise of the venue out of your speakers & the music in their face. With an Emerson paper oil tone cap, the singer can stand out front where they should be, when they should be.

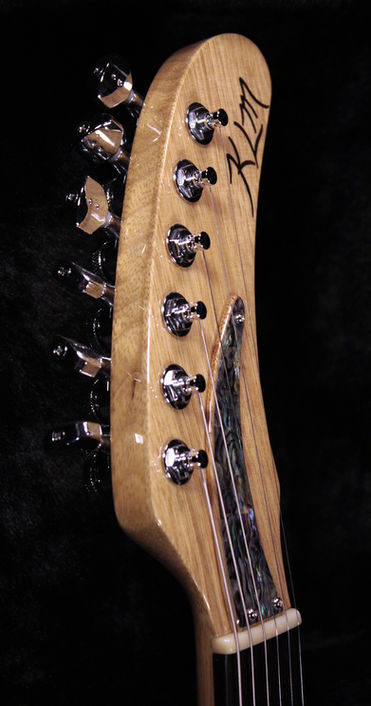

One Piece korina neck korina overlay abalone cover bois de rose inlay graphtech ratio locking tunung keys

Playability:
Tuning stability, intonation & a stiff neck is what the doctor ordered.

A polished bone nut, Graphtech Ratio Locking Tuners & a Gotoh Wrap Around bridge keep the strings in place.

A stiff neck takes the energy you give during the performance.

Keep your mind in the music, not on the gear.

One Piece korina neck coin inlay graphtech ratio locking tunung keys
EA 24 black cherry fret close up stainless steel jumbo hemispherical ends

Comfortable Hands:
Your hands have enough to do...
Smooth, polished jumbo frets keep the vibrato & legato at your finger tips. While the smooth feel of the bridge gives you that firm rest for the palm, it also gives you that out of the way feel when you've got to... go for it.
Hemispherical fret ends slide right by the fast changes, and the stainless steel keeps it that way.

EA 24 Black Cherry Gotoh wrap around bridge
ea 24 black cherry korina headstock back with close up coin inlay

What's behind the scene isn't always for  the crowd...
This coin is a personal gift from me to you.
It represents my old fashion ways & sense of pride. In the days of this coin, Craftsmen were Craftsmen & this 1934 nickel was representative of their true efforts. I'm proudly passing my efforts to you. I know you will use them as a tool to inspire others in your unique way.

Gradient Background_edited_edited_edited.jpg

Woods & Inlays

Specs

Body

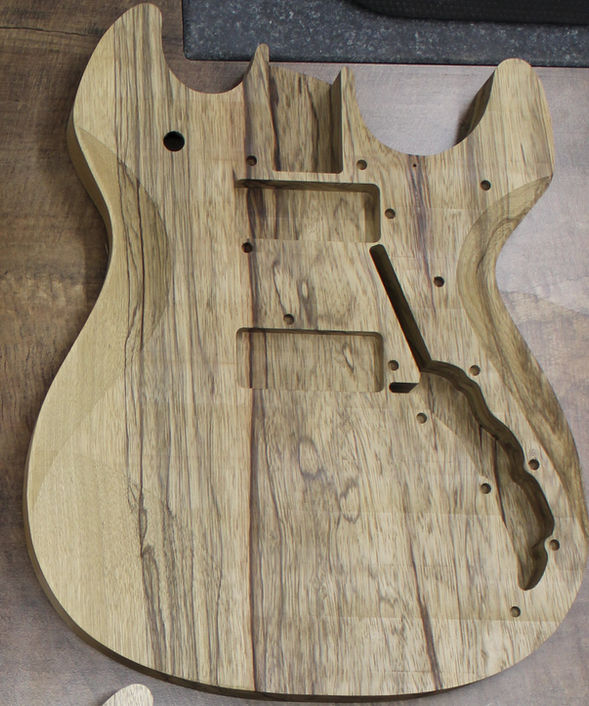

1 Solid Piece - Heavy Pattered Black Limba

Neck woods

1 Piece Korina (or) White Limba

Neck Center Laminate Woods

N/A

Fingerboard wood

Bois De Rose

Fingerboard Inlay

Abalone

Binding

Ebony

Side Dots

Pearl

Headstock Overlay

Korina (or) Black Limba

Headstock Inlay

Bois De Rose

Truss Rod Cover

Korina with Abalone Inlay & Hand Blued Screws

Hardware

Specs

Pick Guard & Switch Cover

Tagged Louisiana Farm Raised Alligator Belly Cordovan Gloss

Guard & Switch Screws

Hand Blued Stainless Steel Machine Screws in Aluminum Anchors

Nut

Bone

Frets

24 Stainless Steel Jumbo with Hemispherical Ends

Truss Rod

Low Profile Dual Action 4mm Key

Carbon Fiber Rod

2 Large Carbon Fiber Rods

Bridge

Gotoh Wrap Around Intonatable Chrome

Tuning Keys

Graphtech Ratio Locking 6 In Line Chrome

Speed Knobs

Control Knobs

Oversize Brushed Aluminum

Strap Buttoms

Electronics

Specs

Bridge Pickup

Fralin P90 Polished Nickel Cover

Neck Pickup

Fralin P90 Polished Nickel Cover

Switch

3 Position Switchcraft with Smooth Polished Black Tip

Jack

Switchcraft

Pots

Dunlop Sealed Smooth Tapper 250k

Tone Cap

Emerson Paper Oil .22

Treble Bleed

Both Volumes Double - Resistor & Capacitor

Wire

Braided

Cavity Shielding

Copper with Polished Swirl Both Cavities & Covers

Measurements

Specs

7 lbs 3.7 oz (or) 7.23 lbs

Weight

Scale

24.625

Fingerboard Radius

12

Nut Width

1.69" - 1 11/16" - 43 mm

Neck Thickness

1st Fret .87"    12th Fret .98"

Neck Shape

Hand Carved Fast C, with Increasing Flattened Center in the Upper Frets

Finish

Specs

Nitro Gloss

Paint

Colors

Black Cherry - Translucent Red Over Metallic Black

Set Up

Specs

3/64th " or 1.25 mm

Action

Relief

.00375"

Case

Specs

Gator Brand Road Case with Custom Snug Fit

Road Case
